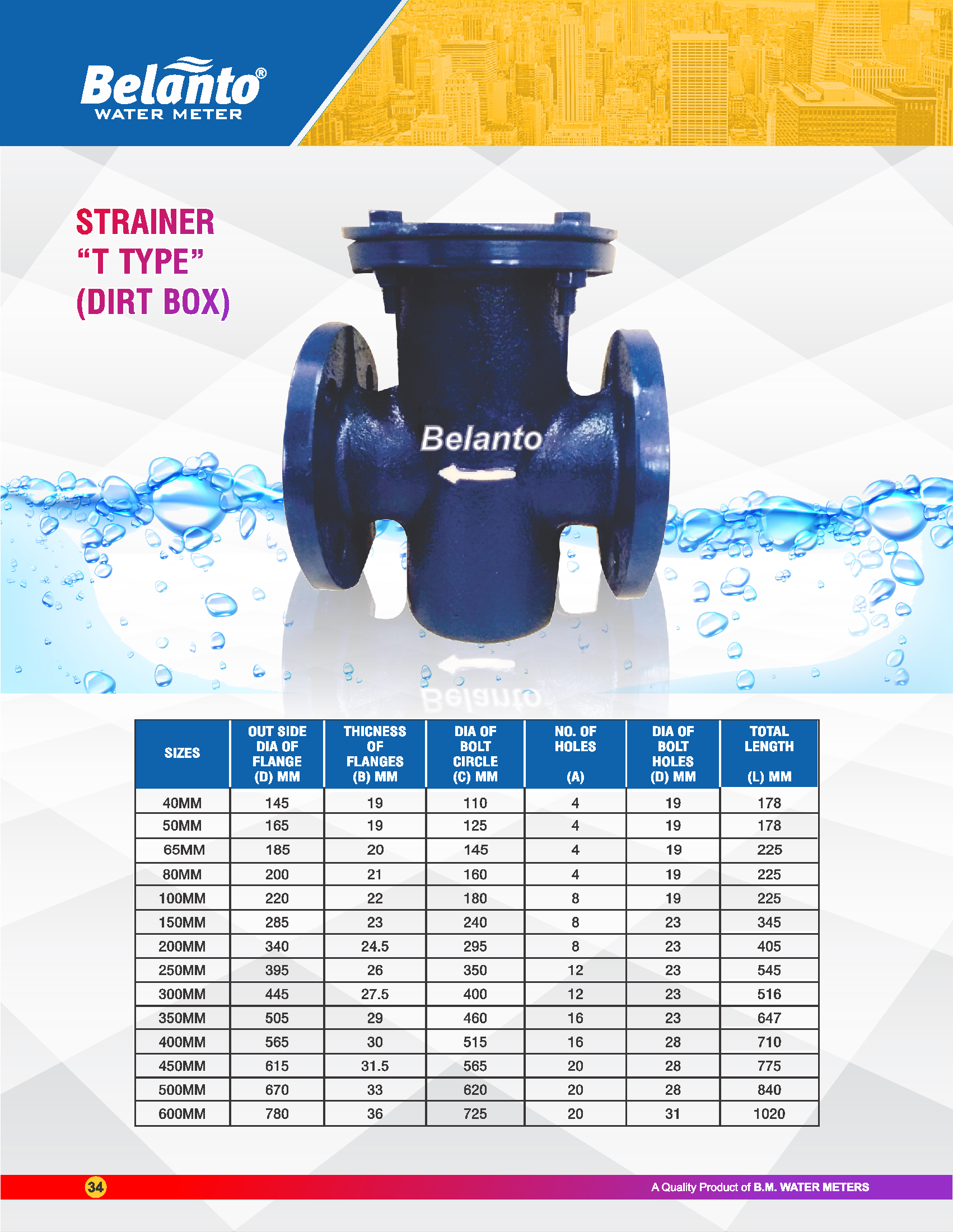

FEATURES
1. Offer size range 40mm. To 1000mm
2.Cast iron Body, Epoxy coated, flange End.
3.Flange dimensions of strainer is as per IS 1538 part IV & VI.
4. we also offer internation flange standart.
5.Install the meter and the strainer in Horizontal position as marked (---->) on the it.
Applications
1.Works excellently in all type of fluid media.
2.Collect all type derbis from water.
3.Occupied less space in pipe line system.
4.Due to less weight, easy to install in pipe line.
5.Easy maintainance and space replacement.
Product details
|
Application |
Water |
|
Available Size |
40 mm |
|
Outside Diameter of Flangs |
145 mm |
|
Temperature |
Upto 45 Degree C |
|
Thickness of Flangs |
19 mm |
|
Total Length |
180 mm |
|
Material |
Cast Iron |
|
Brand |
Belanto |
